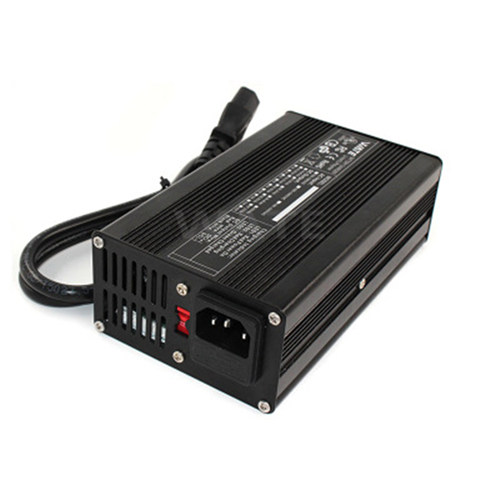

120W充電機(jī)

Model No.: SD-120W

Size : 135*90*50cm

Net Weight : 0.8 kg

Housing: Black or sliver aluminium case

Efficiency : ≥ 87% ( full loading )

Input Voltage : 100VAC ~ 240 VAC , 50 HZ / 60HZ

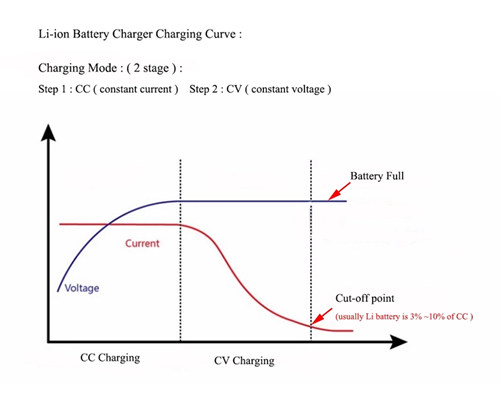

Charging mode : 3 stage cc cv floating charging for agm / gel batteries

Application : 12v 36v 48v 60v 72v 24v agm batteries 10ah to 45ah

Input plug : EU, US , UK , AU , Italy plug etc ( as your requirement )

Output plug : DC Jack , XLR , JST , Cigar Lighter , Alligator clip etc

SD-120W battery charger Specification :

SD-120W Battery Charger Parameter
Input voltage : 100VAC~ 240VAC 50HZ/60HZ		CC			CV	Transition / Cut-off Current		Net Weight	Size	Package
Item No.	Input voltage	Lead Acid	Li-MnO2	LiFePO4	A	Lead Acid (A)	Li(A)	(kg)	(mm)	( pcs/ctn )
SD-120W	12V	14.7V	16.8V	14.6V	6A	1.2	0.3	0.8	135*90*50	12pcs/ctn
	24V	29.4V	29.4V	29.2V	4A	0.8	0.2
	36V	44.1V	42.0V	43.8V	3A	0.6	0.15
	48V	58.8V	54.8V	58.4V	2A	0.4	0.1
Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

Our Advantage :

1. Full automatic transition of cc cv and float / cut-off , Precise limit of voltage & current

2. High efficiency ≥ 90% , high performance , stable and durable

3. Using 3 stage charging mode : cc-cv , floating charging more intelligent and safety, High saturation and lower calorie.

4. two led indiation show charging situation ( led 1 red mean power on / charging , Led 2 green mean full charged )

5. All products passed CE & Rohs certificiation

6. Factory wholesle price , 10 years factory production experience in battery charger industry.

7. multi-protection function : protection for short circuit , over voltage, over-temperature, Reverse polarity protections

( Dc output isolated from AC input ) without any damage to the battery,Can enhance batteries lives

8. Aluminium black and silver housing, light weight portable and reliable
