Power adapter

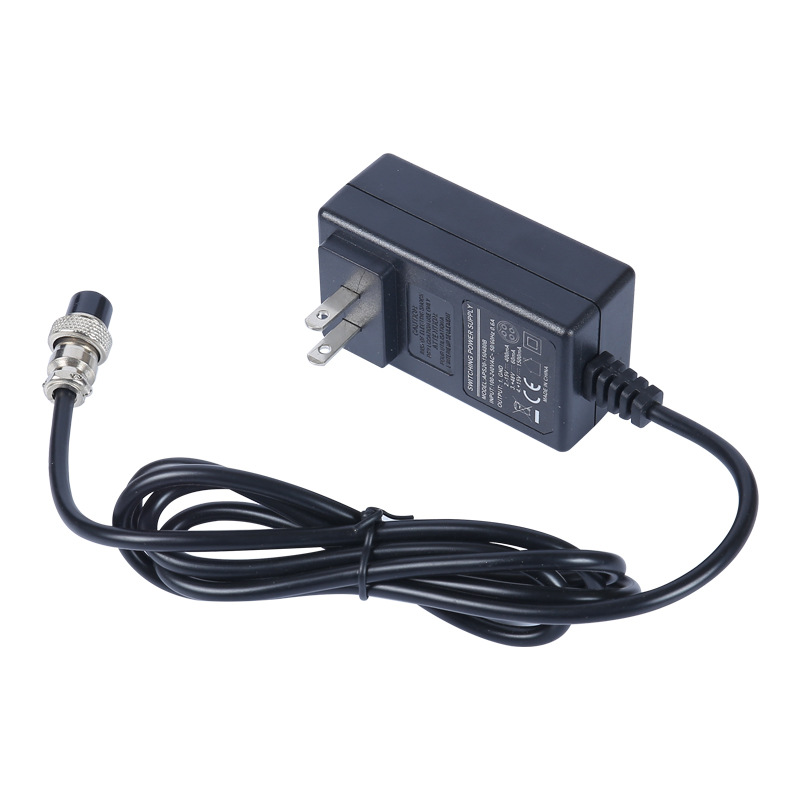

4 connections Sound Mixer Power adapter
Sound console Power adapter +-15V 0.5A 48V 0.06A
Features:
Use of efficient, environmental protection switching power supply circuit frame
Optimization of the shape and structure to facilitate the construction systems
Small ripple & noise -- video output signal more stable, clearly images
Splitter output -- by-pass failure to protect other equipment to work
Power protection -- Output over-voltage protection, over-current protection, short circuit protection
Specification:
|
Model |
T55 |
|
Product |
+-15V 0.5A 48V 60mA Power Supply |
|
Input Voltage |
120-240V AC |
|
Output 1 |
GND |
|
Output 2 |
-15V 0.5A |
|
Output 3 |
+48V 60MA |
|
Output 4 |
+15V 0.5A |
|
Product Dimension |
|
|
Package |
100 pcs in a carton |
|
Charging Voltage/Current |
|
|
Conversion Efficiency |
≥85% |
|
Ripple Wave |
(mVp-p): <1% |
|
Working Temperature |
-20~60℃ |
|
Storage Temperature |
-35~85℃ |
|
Humidity |
0%~95%RH |
|
Overload Protection
|
100%~150% rated output power, Auto Recovery |
|
Overvoltage Protection
|
>115%~135% Rated Output Voltage |
|
Temperature Coefficiency
|
±0.003% (0~50℃) |
